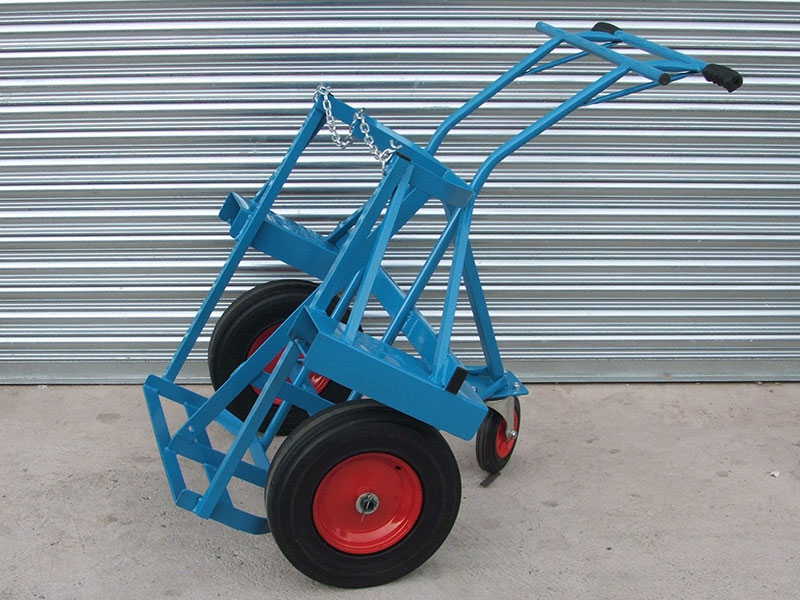

Cylinder Trolleys

There are a huge variety of cylinders in the gas and air industry and as custom made trolley makers we can manufacture a trolley for any permutation of cylinders sizes. The trolley can be made to carry a single bottle or a combination of cylinder bottles to meet your needs. We can also make a trolley to carry multiple cylinders if required. Also cylinders of different sizes can be carried, for example, a full size oxygen cylinder and a 19KG propane cylinder can be accommodated on the same trolley. The most common cylinders are oxygen, acetylene, propane, argon and compressed air.

All the cylinder trolleys are heavy duty and manufactured from 25.4mm steel round tube. The main body is manufactured from 40mm x 6mm mild steel flat bar. A bright zinc plated chain is attached to secure the cylinder (s) in place and rubber hands grips added. There are a variety of wheel options dependant on the type of trolley required and the surface the trolley needs to run over.

The wheel options are 2, 3 or 4 wheels. A standard 2 wheel trolley would be available on 280mm solid wheels. A standard 3 wheel trolley would be on 280mm solid front wheels and a 200mm rear swivel castor and a standard 4 wheel trolley would be on a 280mm solid front wheels and 2 x 150mm rear swivel castors. There are options to change the front 2 wheels for larger solids or pneumatic tyres.

Additional options include fork lift truck transportation boxes and a 3 metre safety chain to attach to the fork lift. A single cylinder trolley on 3/4 wheels can have counter weights attached to facilitate easier loading of the cylinder into the trolley. The chain configuration can be replaced by a hinged gate if required.

Our trolleys are finished in wet spray ex works blue but other colours are available on request.
