We manufacture 2 basic heavy duty sack truck types but can change and adapt to order.
2 Handle Sack truck – Manufactured from 25.4mm mild steel round tube handles and axle. 40mm x 6mm flat bar back. 3mm foot plate measuring 430mm x 250mm. 200mm diameter solid wheels. The back between the handles is formed to cradle a barrel/drum/cylinder. The foot plate is supported for extra strength. Fitted with rubber hand grips.
Options include, wheels size – solids or pneumatics, open foot, plywood back and rubber coated foot if required. The foot plate can be made out of 6mm plate. Larger wheel guards can be added. Also sloping back to accommodate stacking potato sacks/animal feed etc

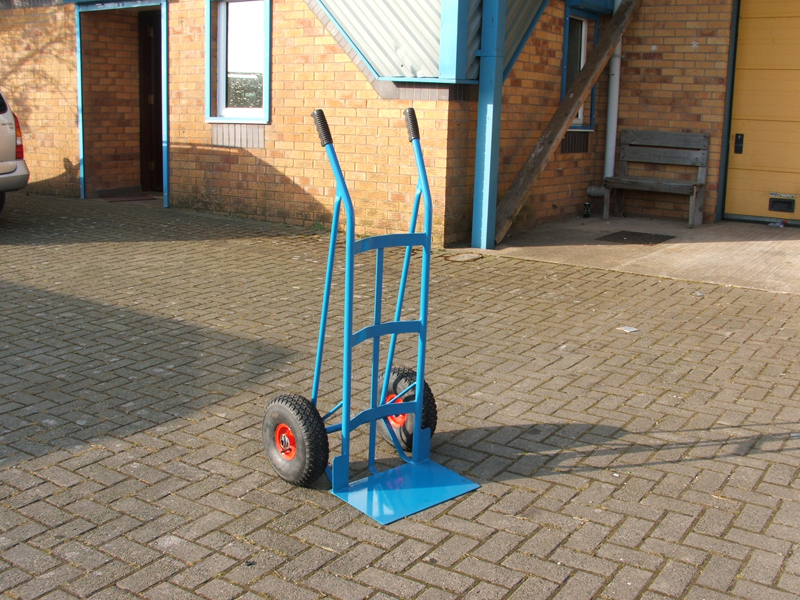

High back centre handle delivery Sack Truck. – Manufactured from 25.4mm mild steel tube and axle. 19mm round mild steel cross rails. 3mm foot plate measuring 430mm x 250mm. 300mm diameter pneumatic tyres on steel centres with bearings. The full length centre handle is braced and enables the user to operate with one hand whilst opening doors etc. The foot plate is supported for extra strength and can be made out of 6mm plate. Larger wheel guards can be added.
All sack trucks are wet spray ex works blue but other colours are available on request.

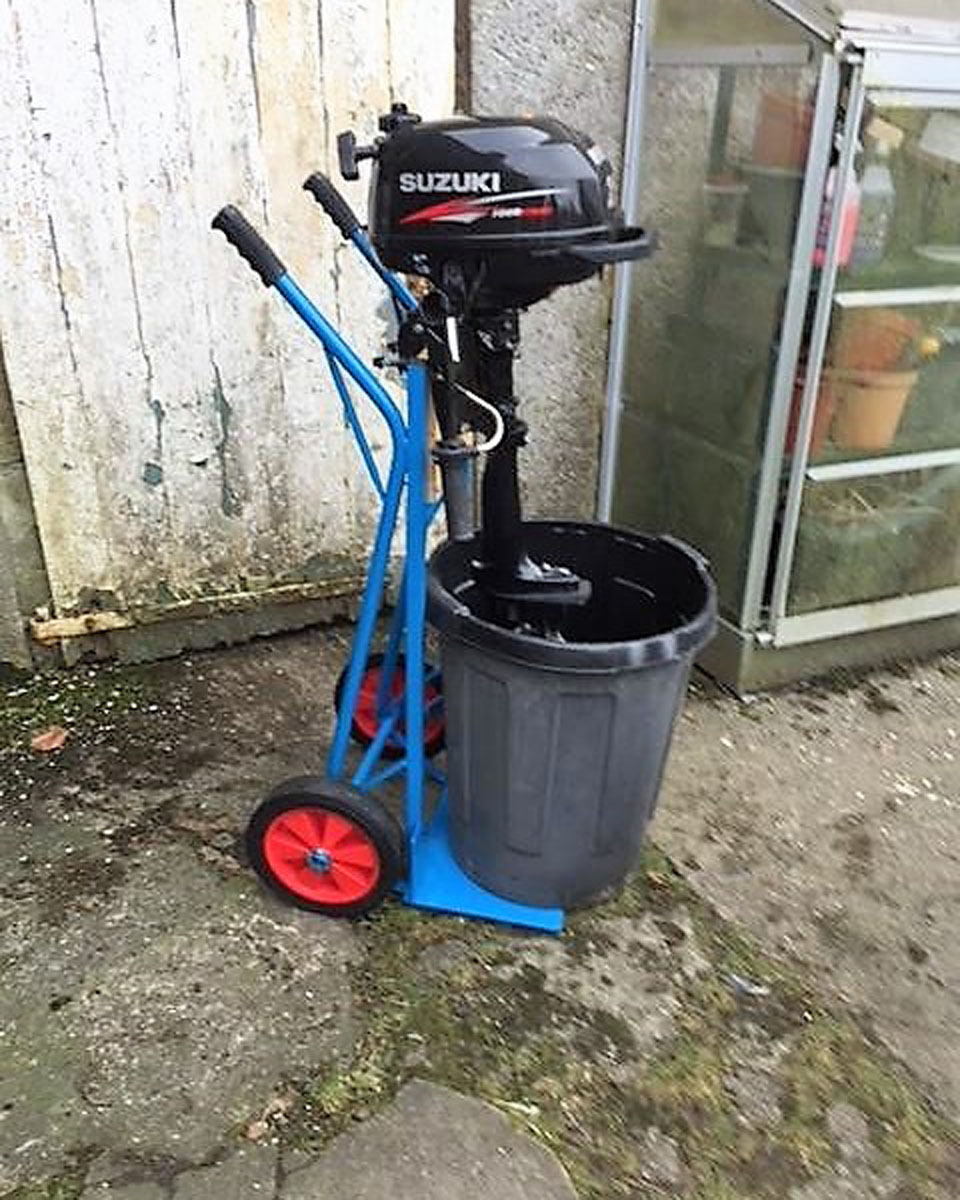

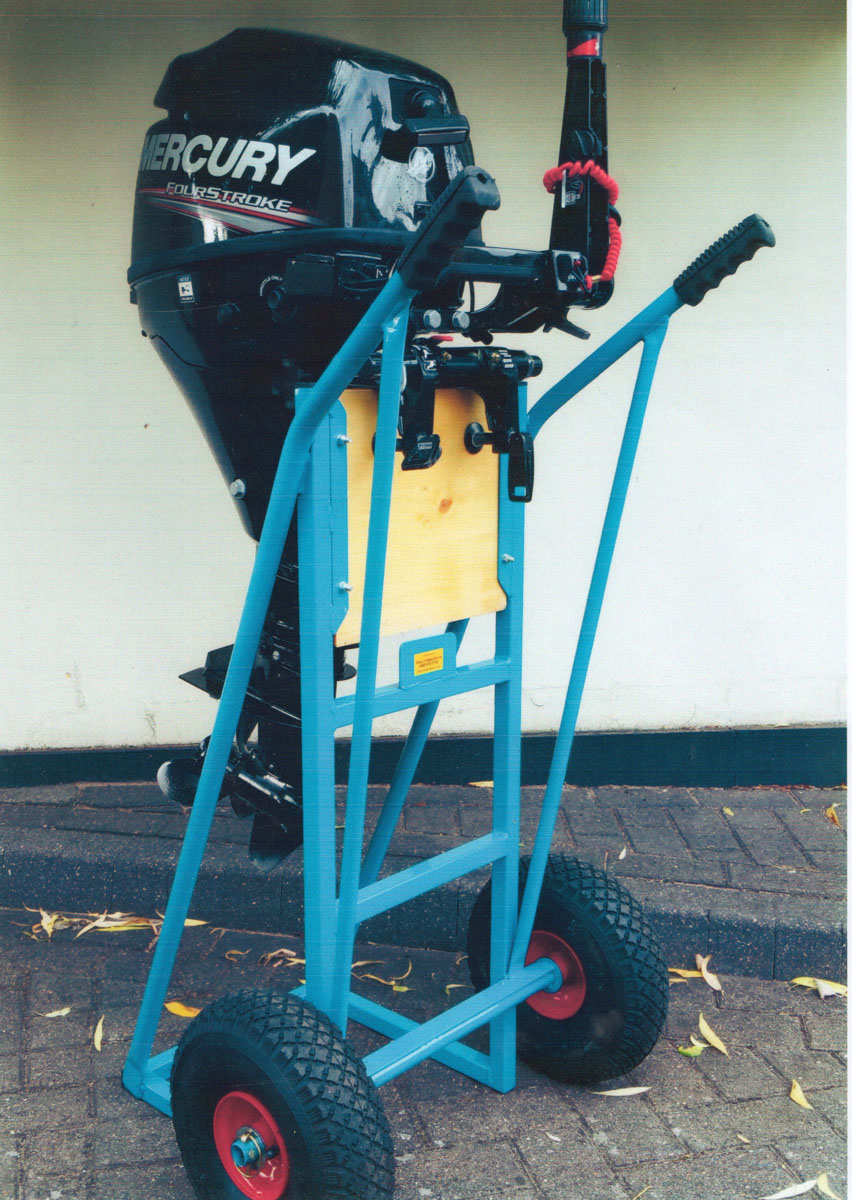

There are a number of modifications that can be made to a sack truck depending upon your requirements, For example we have combined a sack truck with an Outboard Motor transport trolley.
Wheel options
The examples below are pictures of the most frequently used wheels and castors – more options are available depending upon your requirements.
6" Castor
8″ Castor
8″ Solid
10″ Solid
10″ & 12″ Pnuematic
16″ Pnuematic
