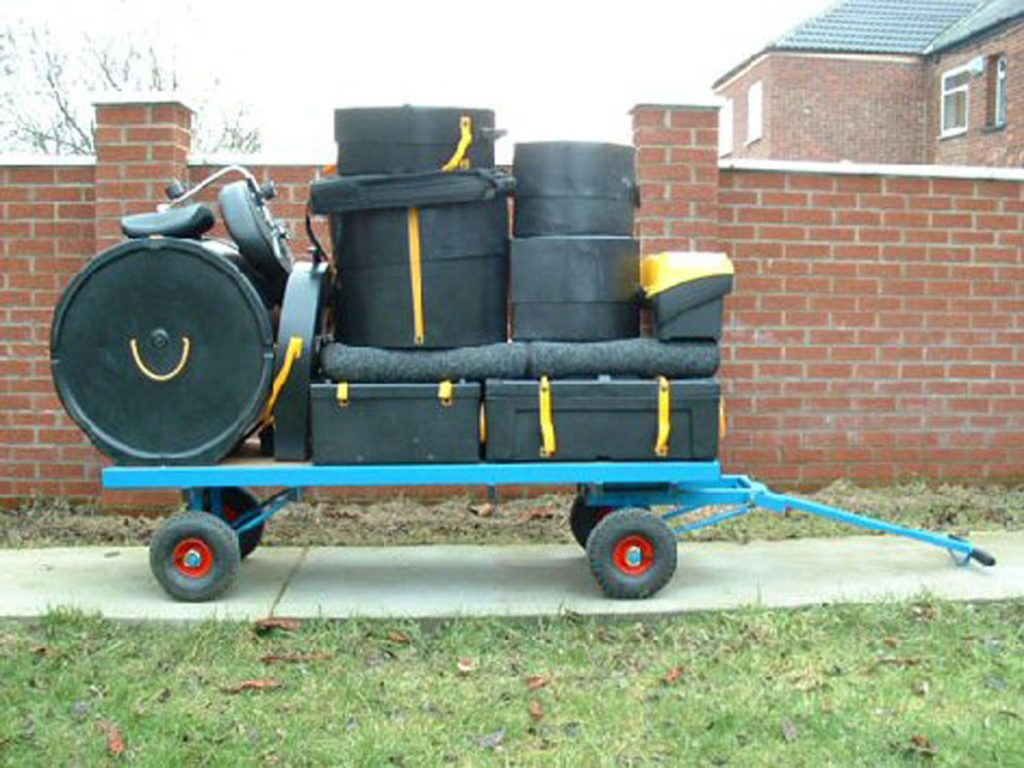

The 4 wheeled turntable trolley is very manoeuvrable and versatile. It is available with a large range of bodies depending upon your requirements. They have a large variety of uses in many situations including Industry, Agriculture and private use.
The format of the 4 wheeled turntable could be any of the 4 examples below:

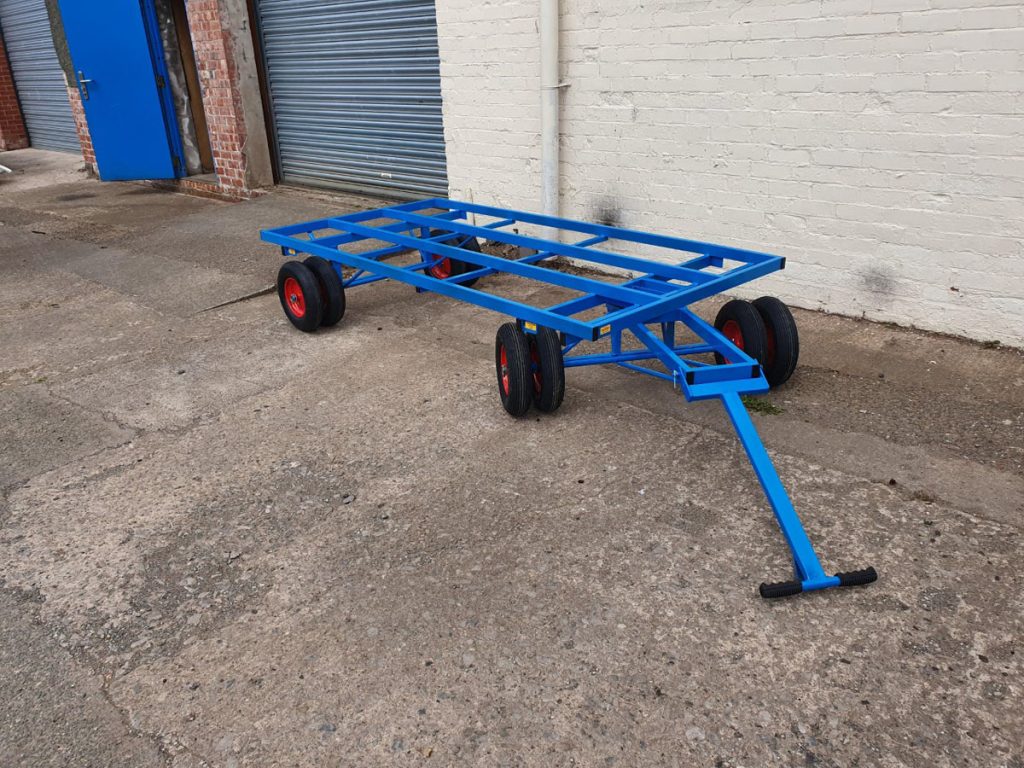

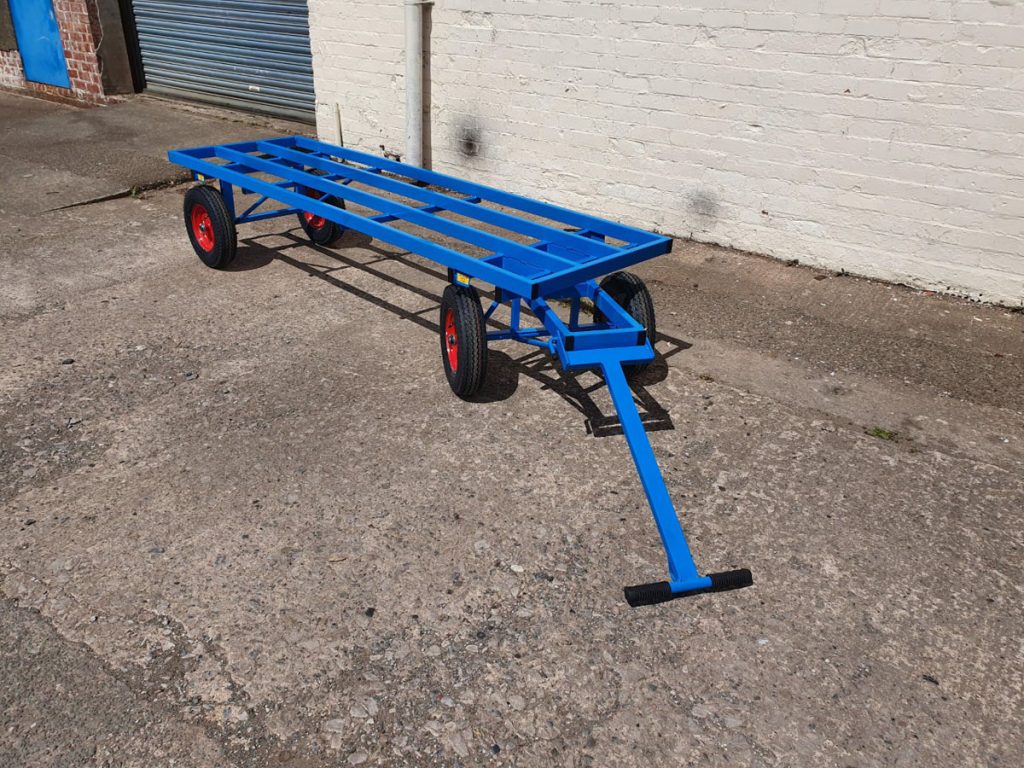

- Flat bed – Manufactured from 50mm x 25mm square tube, round tube axles, wooden deck. A variety of wheels available
- Flat bed with fixed head board – Same materials as option 1. Headboard is to prevent the load from moving forwards onto the operator.

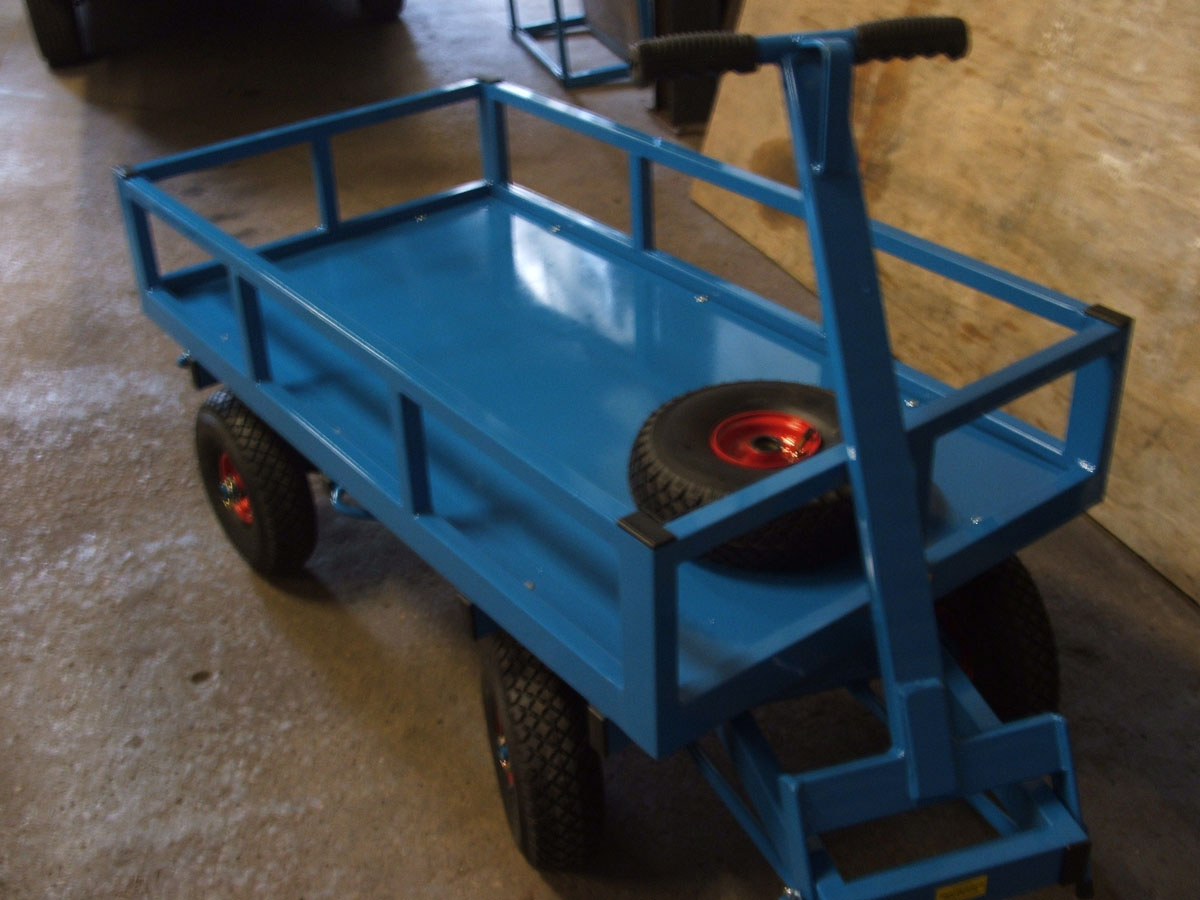

- Full bodied – This can have fixed sides, 3 drop down sides which are also removable. Additional materials are angle iron and flat bar.
- Cage trolley – Please refer back to Cage trolley section.
All the wheels are selected to match the size of the trolley, the working conditions and the carrying capacity. In the event of a load being 1000kg plus and pneumatic tyres preferred, road going trailer tyres or double trolley wheels on each corner mounted on a solid bar axle would be recommended.
Additions could include, Parking brake and/or detachable racking to increase capacity.
The trolleys are finished in ex works blue spray paint although other colours available on request.
Wheel options
The examples below are pictures of the most frequently used wheels and castors – more options are available depending upon your requirements.
6" Castor
8″ Castor
8″ Solid
10″ Solid
10″ & 12″ Pnuematic
16″ Pnuematic
